Single Head PTC Thermistor MZ6-120-ES 120C for Electric Motor Overheating Protection

Brand Name : AFTPTC

Model Number : MZ6-120-ES

Certification : ROHS

Place of Origin : CHINA

MOQ : 500PCS

Price : Negotiable

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 10000000pcs per month

Delivery Time : 1~2 weeks

Packaging Details : Bulk

Name : Single Head PTC Thermistor

Standard : DN440S1/DIN44S0S/DIN 44081

Series : MZ6

Protection Temperature : 120℃

PTC Chip Number : Single

Lead wire Length : S-Standard length

Contact Now

Single Head PTC Thermistor MZ6-120-ES 120C for Electric Motor Overheating Protection

Description

The temperature range is from 60 to 180°C. PTC thermistor beads with different rated response temperatures can be connected in series.PTC thermistors are used to monitor temperature in machines and installations. The design ensures shortresponse time and easy installation.

Typical Applications

- Motor protect

- Power Device

- Motor. Power Supply,Inductance,Transformer.

Features

- Wide temperature range

- Response fast

- Easy installation

- Accords with the internationalstandard of DIN4081,DIN4082

- The dimension is small(1.8*0.6) response is quick,the kind of products is complete.

- Operating temperature range:0~180°C (V=Vmax);-25~+200°C (V=0)

Technical Specification

Single Head PTC Thermistor MZ6-120-ES 120C for Electric Motor Overheating Protection

Technical Specifications Single PTC Triple PTC Units
Max working voltage Umax 30 30 V
Normal using voltage V ≤2.5 ≤2.5 V
Rated action temperature Tk 60~180 60~180 ℃
Tk tolerance ±5 ±5 ℃
Tk repeatability △T ±0.5 ±0.5 ℃
Resistance in norm al temperature
T=25±1℃(V≤2.5V)		 R25 ≤100 ≤300 Ω
PTC resistance at some
temperature(V≤2.5V)		 TK-5℃ ≤550 ≤1650 Ω
PTC resistance at some
temperature(V≤2.5V)		 Tk+5℃ ≥1330 ≥3990 Ω
PTC resistance at some
temperature(V≤2.5V)		 Tk+15℃ ≥4 ≥12 KΩ
-20℃~Tk-20℃ ≤250 ≤750 Ω
Tk reaction time Td <5 <5 S
Insulation strength V 2.5 2.5 KV
Maximum storage temperature T1max 125 125 ℃
Minimum storage temperature T1min -25 -25 ℃
Lead wire color See the colorful coding below
Weight Wt 2 3.5 g

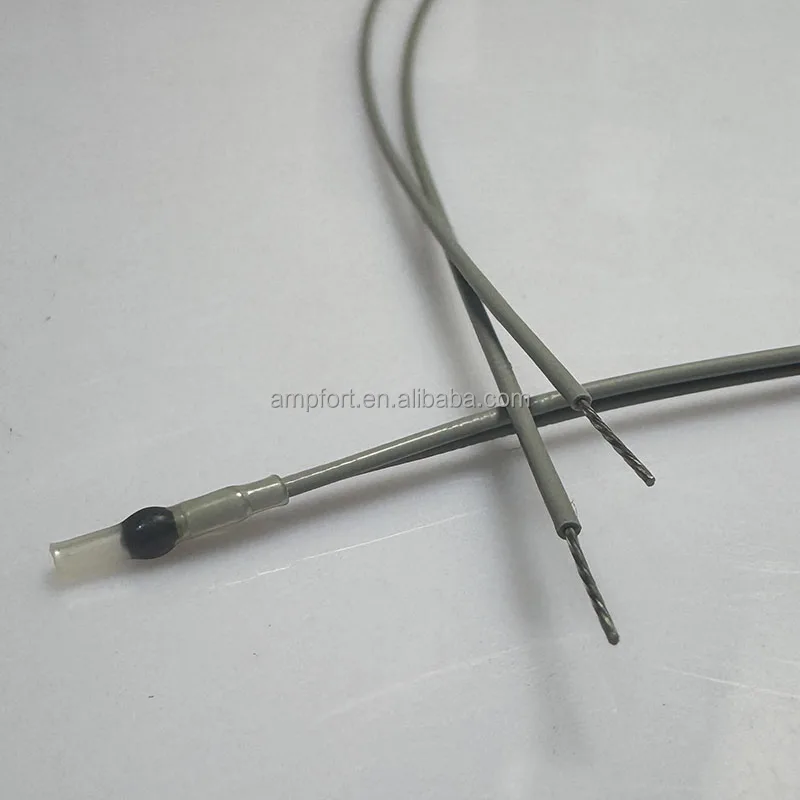

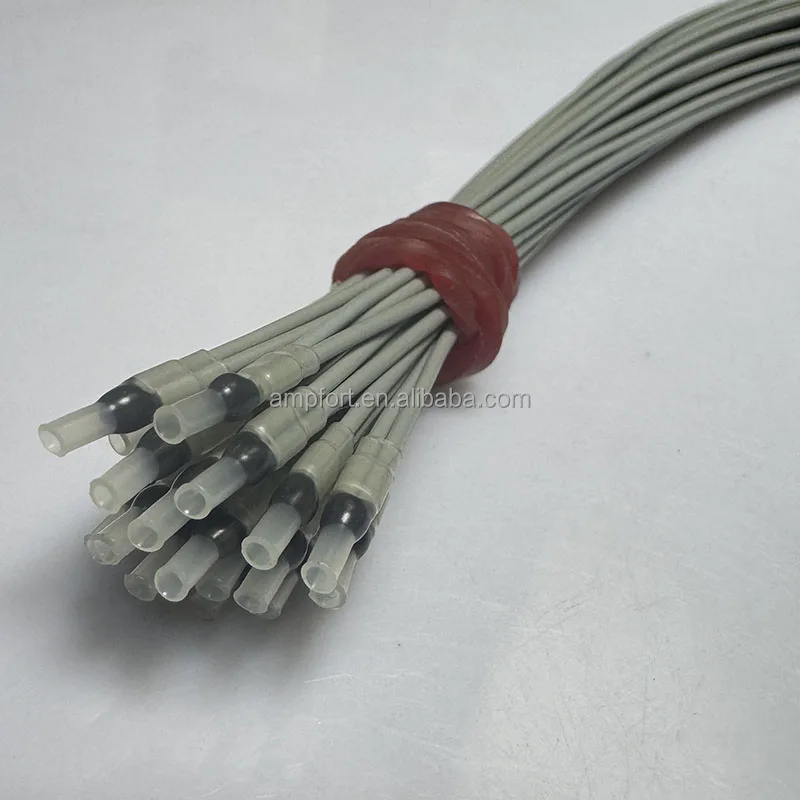

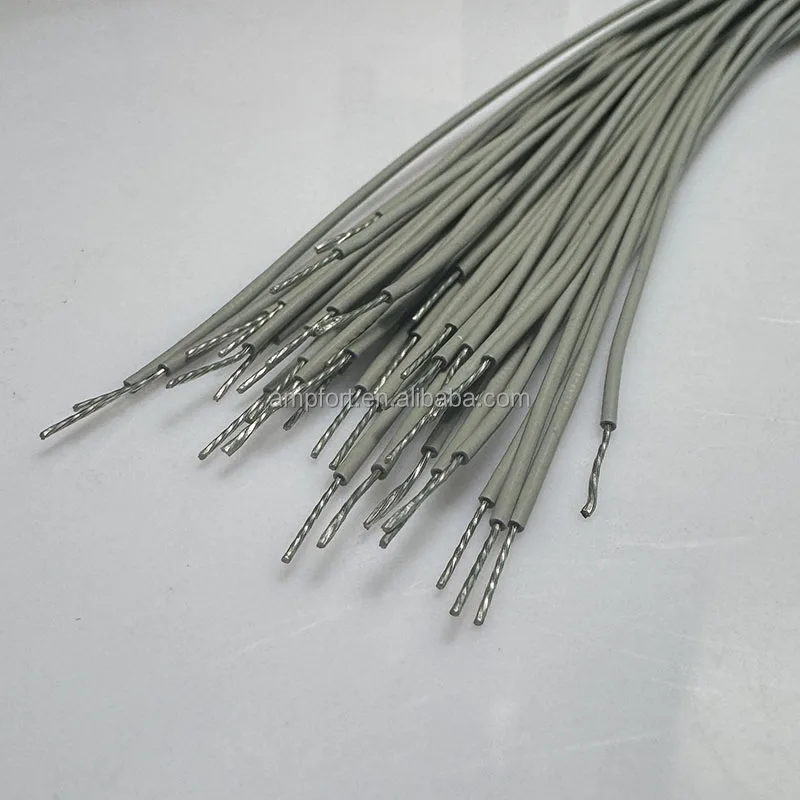

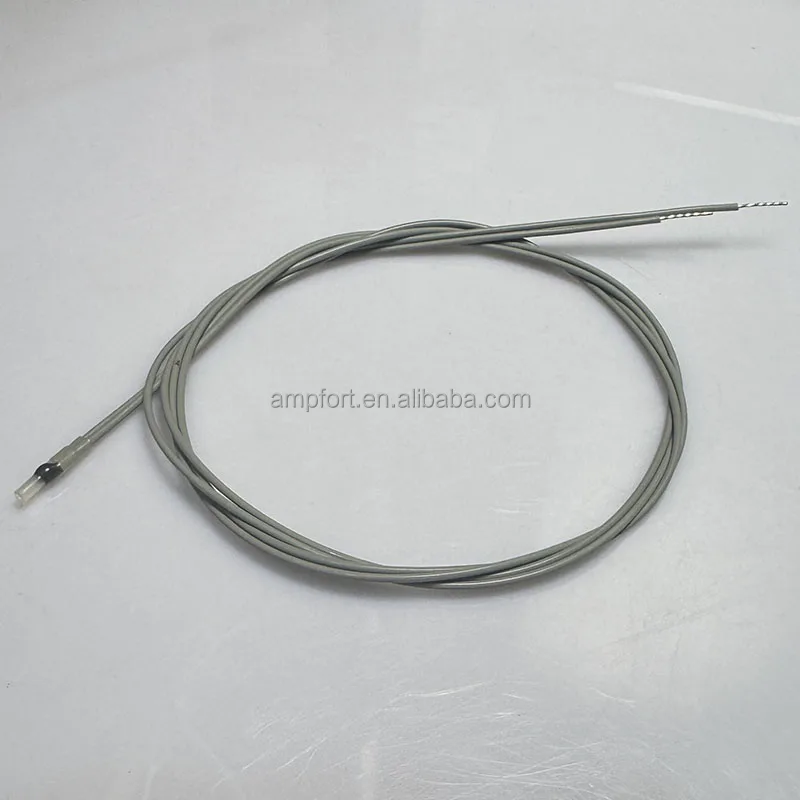

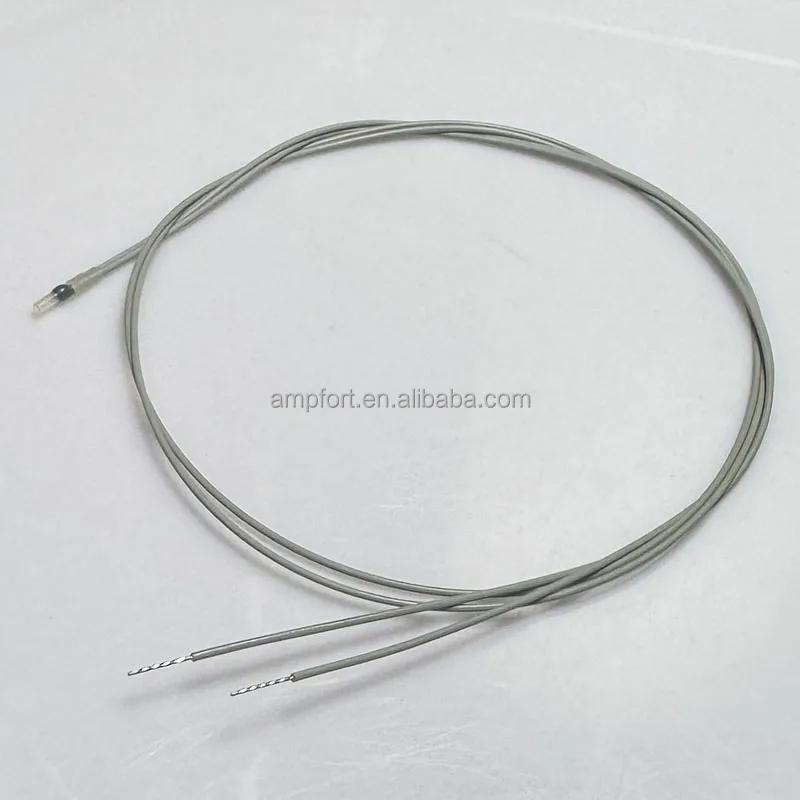

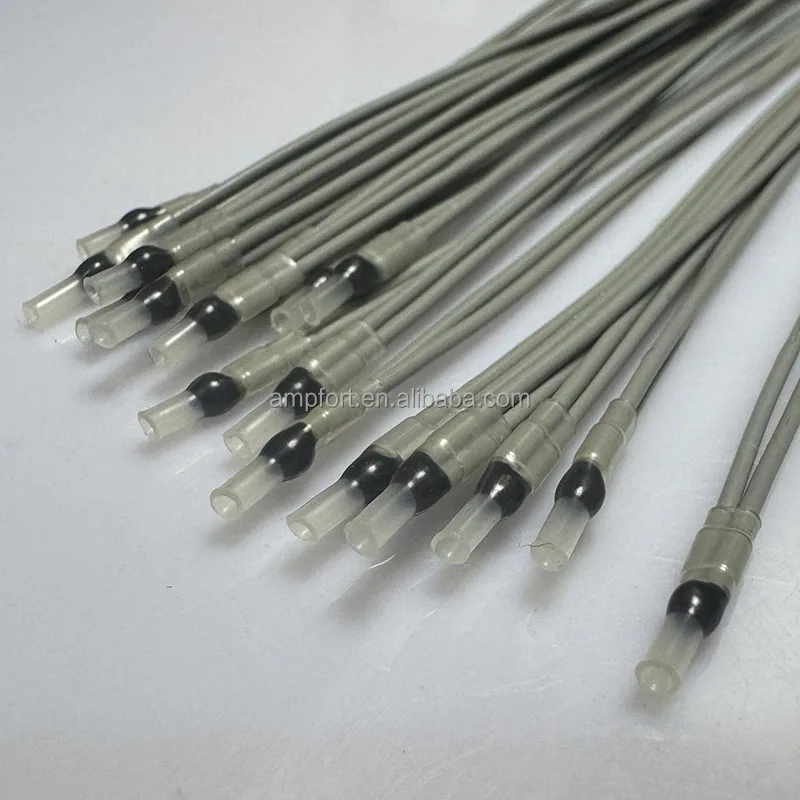

Photos

Single Head PTC Thermistor MZ6-120-ES 120C for Electric Motor Overheating ProtectionSingle Head PTC Thermistor MZ6-120-ES 120C for Electric Motor Overheating ProtectionSingle Head PTC Thermistor MZ6-120-ES 120C for Electric Motor Overheating ProtectionSingle Head PTC Thermistor MZ6-120-ES 120C for Electric Motor Overheating ProtectionSingle Head PTC Thermistor MZ6-120-ES 120C for Electric Motor Overheating ProtectionSingle Head PTC Thermistor MZ6-120-ES 120C for Electric Motor Overheating ProtectionSingle Head PTC Thermistor MZ6-120-ES 120C for Electric Motor Overheating Protection
